Description

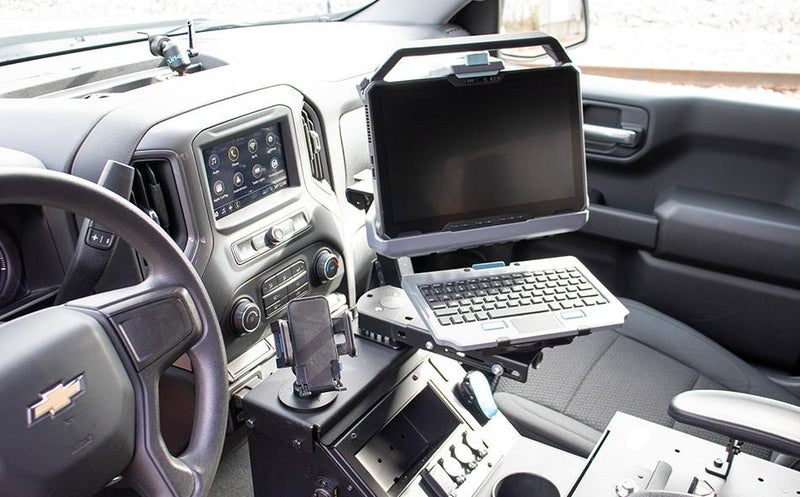

Designed for the Dell Latitude Rugged Extreme 7230 12-inch fully rugged tablet, the Gamber-Johnson docking station helps professionals in public safety, material handling, and utilities to complete their daily work challenges.
ANTENNA PASS-THROUGH
Quad (SMA) Antenna RF
PORT REPLICATOR
USB-A 9-Pin – (2) Fully powered (1.5 Amps each)
USB-C (1) Fully powered (1.5 Amps)
RJ45 Ethernet (1)
RS232 Serial (1)
Power Input: 19.5 Vdc
Antenna: Quad RF (SMA)
POWER SUPPLY INCL.
NONE
FEATURES
Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer
The docking station accommodates the tablet€™s hand strap or magnet mount attachment.
Access to all tablet control buttons and ports while the tablet is docked
Downward-facing I/O ports; integrated cable strain relief and cable management system
Configurable QUAD RF pass-through for additional customization
The docking connector gasket provides additional water protection
One-hand docking and release for efficient use all day long
Keyed lock for theft deterrence
Gamber-Johnson’s rugged construction and reliability
Composite design for reduced weight and durability
VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments
CERTIFICATES & TESTING
MIL-STD-810H Operational and Non-Operational Vibration/Shock Testing
Environmental: Humidity, Thermal Shock, High/Low Temperature – Storage/Operational
Cycle Test: 30,000 cycles, Latch, Lock, and Docking Connector
Electrostatic Discharge: ISO 10605
Shock Crash Hazard: Test SAE J1455
EMC Testing: EN 55032, EN50498
RoHS, FCC, CE, UKCA
WARRANTY
3-Year Limited Warranty
EXTENDED WARRANY/ GAMBER GUARD
Available
KIT INCLUDES
Dell 7230 Rugged Extreme Tablet Vehicle Docking Station – QUAD RF (7160-1772-04)
Mounting Hardware
Installation Instructions
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
Basic mounting hardware such as plates or poles: 1-2 weeks to ship
Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
