Description

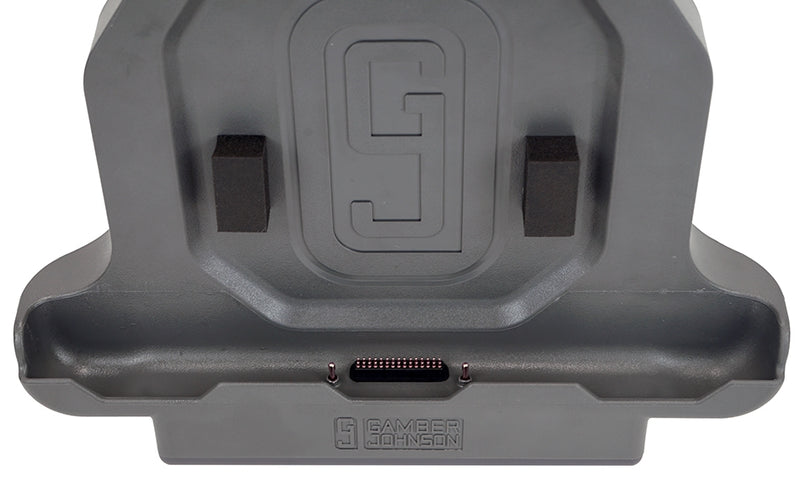

Gamber-Johnson’s Zebra ET51/56 10″ SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND isolated material handling power adapter. Now shipping.
Antenna Pass-Through
None
Port Replicator
Zebra Certified Electronics
USB 3.0 (2) – 9 pin (900mA)
RS232 Serial (1) – Power on pin 9 (825mA)
Ethernet (1) – RJ45 (322 mb/s)
Power Input: 12VDC
Power Supply Included
Yes – LIND isolated material handling power adapter, 70-110 VDC input range, 12 VDC output voltage, 3.5 Amps output current with bare wire lead (7300-0418)
Features
Designed for the Zebra ET51/56 10″ rugged tablet computer with rugged frame
This dock does not accommodate ET51/56 accessories
Front camera on ET5X accessible when the tablet is in the docking station
Compatible with Windows or Android operating systems
Access to all control buttons and ports while the tablet is safely docked
POGO pin connector provides power to charge the Zebra tablet while docked
Bottom-facing I/O ports; integrated cable restraint/cable management system
Guide pins prevent damage to the docking connection when docking the tablet
Composite/aluminum design for reduced weight and extended durability
Designed with rounded edges to enhance personal safety
Keyed lock for security and theft deterrence
Forward facing docking latch/release for easy one-handed operation:
Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
To remove, lift latch to disengage and pull computer out of docking station
VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson€™s Zirkona mounting products
Certificates & Testing
MIL-STD 810G Shock/Vibration Tested
MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
SAE J1455 Crash Tested
Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
RoHS, FCC, CE Certifications
Kit Includes
Zebra ET51/56 10″ SLIM Port Replication Docking Station
LIND Power adapter
Mounting hardware
Installation guide
Warranty
3-Year Limited Warranty
Explore our extended warranty program
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
Basic mounting hardware such as plates or poles: 1-2 weeks to ship
Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
